Important concepts

Now that you’ve had a taste of what the MEGA65 can do, it’s time to prepare your computer for long term use. But first, let’s discuss some important concepts of how the MEGA65 works.

SD memory cards

The MEGA65 uses an SD memory card for its primary data storage. There are two SD card slots: a full-size SD card slot inside the machine, and a microSD card slot accessible on the back of the machine. The MEGA65 comes bundled with an SD card installed in the internal slot.

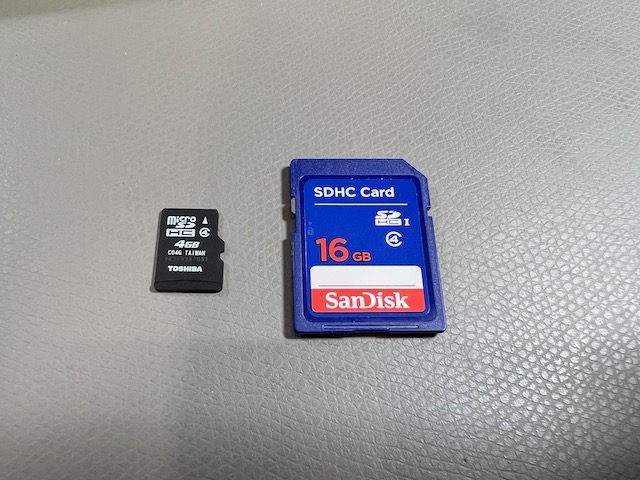

A microSD card and a full-size SD card

MEGA65 only uses one SD memory card at a time. If there is a microSD card in the external slot, it ignores the full-size SD card in the internal slot. The SD card contains the operating system software (“ROM”), firmware (“core”), the system utilities (such as the Freeze menu), and D81 disk images.

I recommend installing a microSD card in the external slot, and leaving the internal card with its factory-installed data intact. Following this Guide, you will set up a microSD card with all of the latest versions of the software. You will use this card to transfer software and data between MEGA65 and your PC.

Note

Many features of the MEGA65 expect short MS-DOS-style filenames for files on the SD card: a maximum of 8 characters, a dot, then a maximum of 3 characters (myprogra.prg).

Some features will handle files with longer names, but just not display the full name in menus. The Freeze menu and core selection menu (discussed later) do this.

Some features such as loading SD card files from BASIC (DLOAD "MYPROGRA.PRG",U12) will fail for files with longer names. The only solution is to rename the file to use a short name using your PC.

(This does not apply to files on CBM disk images, which have their own unrelated limitations on names.)

Cores

The MEGA65 is powered by a Field Programmable Gate Array (FPGA). An FPGA is a special kind of chip that can be programmed to perform the functions of most any integrated circuit (IC). Like an IC, it is fast, and interacts electronically with the rest of the hardware. Unlike an IC, it can be reprogrammed with new logic at any time. FPGA code is sometimes referred to as firmware, a term you may recognize from modern computers and other devices. MEGA65’s FPGA is programmed to behave like the complete collection of ICs you would find in a Commodore 65: the CPU, video and sound chips, and so on.

The MEGA65 team continues to make improvements to this firmware, and you will want to update your machine with new firmware as updates become available. Other contributors are developing alternate FPGA programming to simulate other computers, such as a Commodore 64.

To make managing multiple sets of firmware easy, MEGA65 describes each set as a core. You will download a core data file (described in the manual as a bitstream), copy the file to the microSD card, and follow a procedure to install the core in one of seven user-accessible slots. You can access a menu to tell MEGA65 which core to use.

The MEGA65 always retains a copy of its original factory core (in “slot 0”). If something goes wrong while updating another core, you can always go back to the original version.

ROMs

While the core recreates the hardware of the Commodore 65, the ROM recreates the built-in software of the Commodore 65. This software interfaces with the hardware and provides built-in functionality like BASIC programming.

The original Commodore 65 kept its software on a physical Read-Only Memory (ROM) chip. With MEGA65, this software lives in a file on the SD card named MEGA65.ROM. MEGA65 loads this into memory when you turn it on. This file contains the original software from the C65 ROM chip licensed from the copyright holder, with many fixes and improvements. You can upgrade the operating system by replacing this file on the SD card.

The Hypervisor

The MEGA65 has additional built-in functionality not present in the original Commodore 65, such as for managing the startup sequence, SD cards, cores, and configuration. This operating system is known as the Hypervisor.

You see the Hypervisor in action every time you turn on your MEGA65. Normally this screen displays some messages then quickly disappears. If you want to pause the Hypervisor to read these messages, hold the Ctrl key during startup. Release Ctrl to continue.

PAL and NTSC

Back in the day, PAL and NTSC were competing standards for analog video signals, used for both transmission and rendering on cathode ray tube (CRT) displays. They differed in two major ways:

  • The number of horizontal lines used to make the image. PAL uses a vertically dense 625 interlaced lines, compared to NTSC which uses 525 lines.

  • The number of times the screen is drawn per second, aka the refresh rate. PAL sweeps the screen top to bottom 50 times per second (50 Hz, or 25 interlaced frames per second), while NTSC refreshes at a faster 60 times per second (60 Hz, or 30 frames per second).

Commodore made different versions of its computers for each standard, and sold them in the countries where those standards were used: NTSC in the United States and Japan, and PAL in Europe.

Both the raster line count and the refresh rate affect the execution of computer programs written for vintage computers with analog video output. Software has to use precise timing to render graphics for each frame, and is written to expect the screen to be a certain number of lines tall. Games use the refresh rate to control the timing of other events like playing music. Without extra work by a programmer to account for the differing standards, a program written to be compatible with one video standard might run too fast or too slow, have erratic graphical behavior, or just not work at all on a machine built for the other standard.

The MEGA65 has an analog VGA video output and a digital HDMI video output. Both of these standards are newer than PAL and NTSC and can support multiple resolutions and refresh rates. The MEGA65 must still be set to either PAL mode or NTSC mode (in Configuration or the Freeze menu) to support the vintage software that might be expecting one or the other.

The chances are good (though not guaranteed!) that the monitor you are using with your MEGA65 can support the video signal it outputs in either mode, possibly with some manipulation of the image to account for the differing image heights. If you are having difficulty running a program, try switching to the other video mode. You may need to adjust your monitor’s picture settings.

What about SECAM?

The SECAM standard also competed with PAL and NTSC at the time. In countries that used SECAM, Commodore sold PAL machines with an additional device that converted the PAL signal to SECAM. Because they used a PAL video chip, they could run software written for PAL, so there was no SECAM-specific software.
